Startec 600

The Startec is a unique solution on the market. Deploying Scheidegger technology for tamper- evident sleeve applications, for more than 30 years the Startec applicator is integrated inside a labeler frame to apply cap seals.

The system is installed on top of the labeler exit starwheel so does not require extra space on the line apart from the shrink tunnels, thus offering conveyor reduction and easy accumulation control

Based on a direct shooting technology thanks to its angled cutting head, the sleeve application is smooth, positively progressive and accurate.

Machine Specifications

  • Max Speed Tamper Evident 600 bpm
  • Container Diameter*  All sizes
  • Cap Diameter*  8mm / 85mm
  • Container Height* All sizes
  • Sleeve Cut Length  25 mm / 65 mm
  • Material Thickness*    0.35 / 0.08 mm
  • Material Inner Core Diameter 127 mm (5”) to 2524 mm (10'')
  • Max Sleeve Roll Diameter 350 mm / 500 mm
  • Number Unwind Reels  1-2 optional
Information
  • Technical Features
  • Performance
  • Functionalities
  • Electrical Design
  • Mechanical Design
  • Tunnels & Accessories
  • Markets

Technical Features

Scheidegger Technology – Continuous Motion Process

  • The film is unwound on a separate non- stop dual-reel unwinder. The film enters the machine via a specific folding system which creates two additional folds on the tube.
  • The film is then driven by servo motors through a rotary cutting block which cuts the sleeve like a regular labeler, avoiding material start/stop process, and tension issues found on other available technologies: « guillotine » or « bullet ».​
  • The sleeve is then positively applied over the bottle neck thanks to the inclined cutting head which has the bottle cap go inside the sleeve

Performance

  • Up to 600 bpm with one single head
  • High reliability <5/10 000 un-sleeved units – 99,5% efficiency stated​
  • High registration Accuracy: continuous sleeve motion
  • Fast changeover <5 mn (for same bottle neck)
  • Positive sleeve placement on bottle neck
  • Long knives useful life >20 Million cuts

Functionalities

  • Easy troubleshooting via HMI​
  • Remote Maintenance via IP
  • Automatic speed variation



Electrical Design

  • Easy automation and integration​
  • Remote Maintenance via IP
  • Speed control via label encoder​
  • Advanced motion control



Mechanical Design

  • Linear single head machine​
  • Small conveyor footprint​
  • Aluminum or Stainless steel construction
  • Dedicated to High speed lines
  • Continuous motion Technology​
  • Servo Driven controls​
  • Integrated inside labeler​
  • Unwind separated​



Tunnels & Accessories

  • Infrared or Hot air technologies​
  • Inspection & vision systems​
  • Data coding sytems​
  • Product handling – Robots​
  • Non stop unwinders​



Markets

  • Beverages​
  • Food
  • Healthcare & Pharma​
  • Cosmetics​
  • Homecare​
  • Chemical industry​

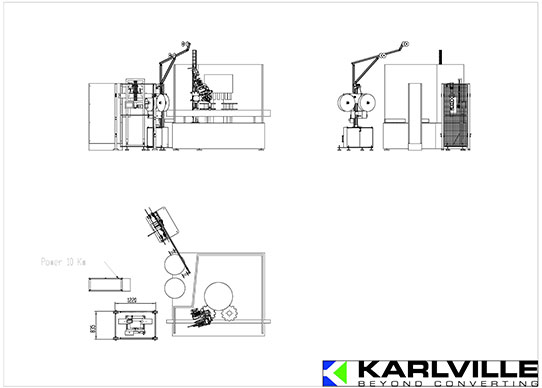

Layout

startec 600 schema
