Tampertec 1000s

Tampertec 1000s

The Tampertec product line offers Scheidegger technology for tamper- evident sleeve applications for cap sealing needs thanks to 30 years experience on sleeve application.

Based on our exclusive pick and place transfer system , the sleeve is smoothly, positively, progressively and accurately applied on most all containers, even on difficult shapes. Angled cutting head.

All projects can be customized to customer requirements from the platform of our standard specification to achieve high performance while keeping our proven standard technology.

Machine Specifications

  • Max Speed Tamper Evident 900 bpm
  • Container Diameter*  50 mm / 95 mm
  • Cap Diameter*  8mm-85mm
  • Container Height* 80 mm / 350 mm
  • Sleeve Cut Length  22 mm / 90 mm
  • Material Thickness*    0.35 / 0.08 mm
  • Material Inner Core Diameter 127 mm (5”) to 2524 mm (10'')
  • Max Sleeve Roll Diameter 350 mm / 500 mm
  • Number Unwind Reels  2 - separate unwind
  • Technical Features
  • Performance
  • Functionalities
  • Electrical Design
  • Mechanical Design
  • Tunnels & Accessories
  • Markets

Technical Features

Scheidegger Technology – Continuous Motion Process

  • The film is unwound on a separate non- stop dual-reel unwinder (option). The film enters the machine via a specific folding system which creates two additional folds on the tube.
  • The film is then driven by servo motors into a rotary cutting block which cuts the sleeve like a regular labeler, avoiding material start/stop process, and tension issues found on other available technologies: « guillotine » or « bullet ».
  • The sleeve is then positively applied on bottle neck thanks to the angled cutting head which has the bottle cap go inside the sleeve.



  • Up to 900 bpm with one single head
  • High reliability <5/10 000 un-sleeved units -99,5% efficiency stated
  • High registration Accuracy: continuous sleeve motion
  • Fast changeover <5 mins (for same bottle neck)
  • Positive sleeve placement on bottle neck
  • Long knives useful life >20 Million cuts



  • Easy troubleshooting via HMI
  • Remote Maintenance via IP
  • Automatic speed variation
  • Enhanced motion control decreases mechanical wear on T1000 models (less mechanical parts)


Electrical Design

  • Easy automation and integration
  • Remote Maintenance via IP
  • Speed control via conveyor system
  • Advanced motion control
  • CE Manufacturing

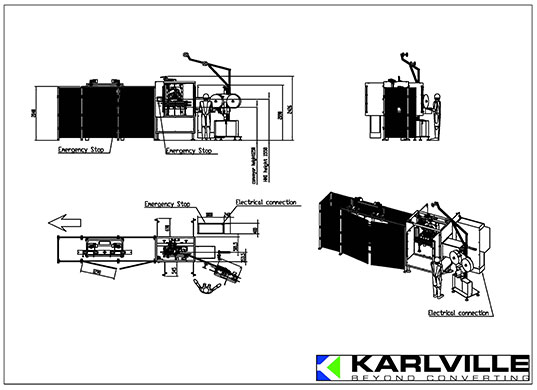

Mechanical Design

  • Linear single head machine
  • Small conveyor footprint
  • Aluminum or Stainless steel construction
  • High speed lines dedicated
  • Continuous motion Technology
  • Mechanical or Servo Driven controls
  • Pick & place mandrel system optional
  • Unwind separated


Tunnels & Accessories

  • Infrared or Hot air technologies​
  • Inspection & vision systems​
  • Data coding sytems​
  • Product handling – Robots​
  • Non stop unwinders



  • Beverages
  • Food
  • Healthcare & Pharma
  • Cosmetics
  • Homecare
  • Chemical industry
